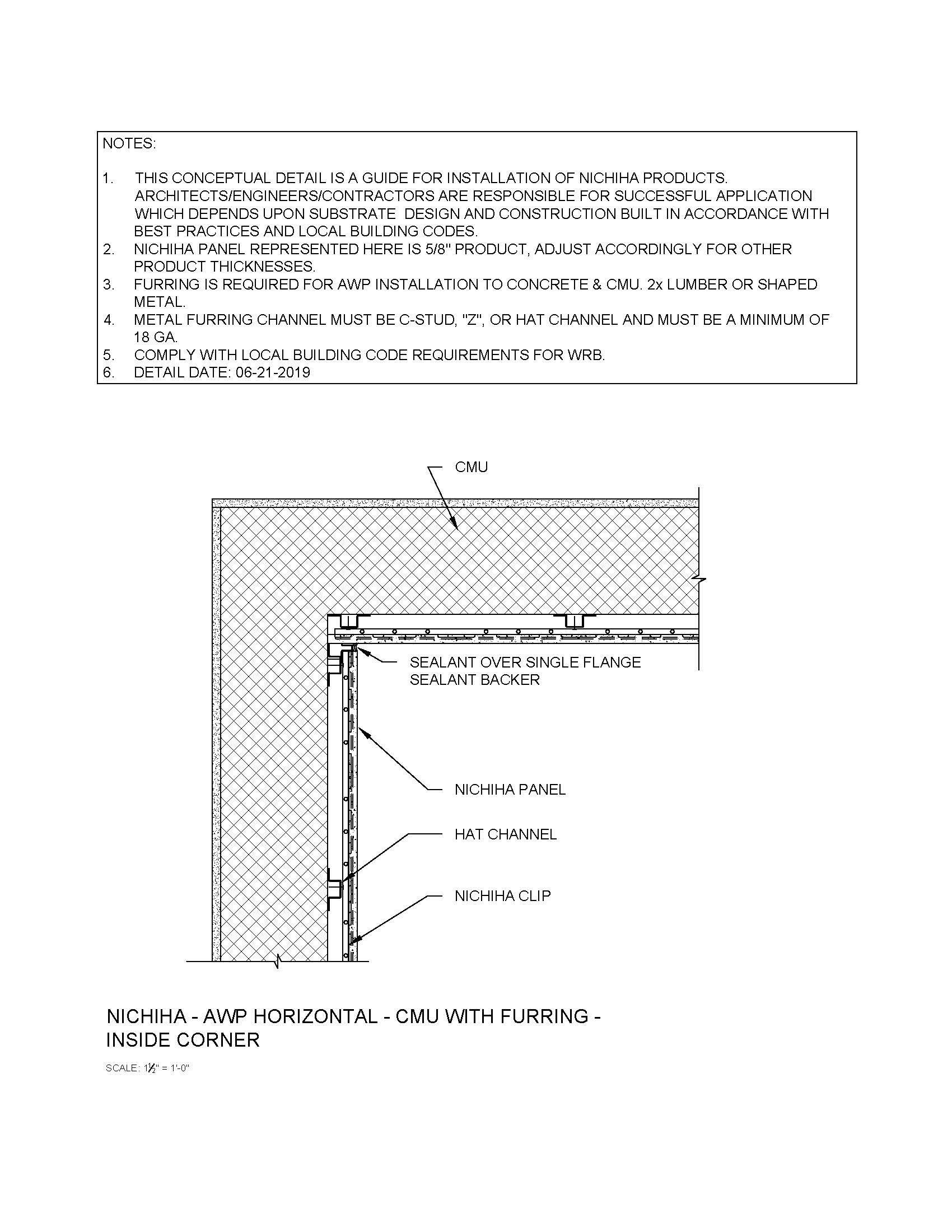

A wall section of horizontal Architectural Wall Panel (AWP) over CMU with furring, Ultimate Clips, and Single Flange Sealant Backer at an inside corner.

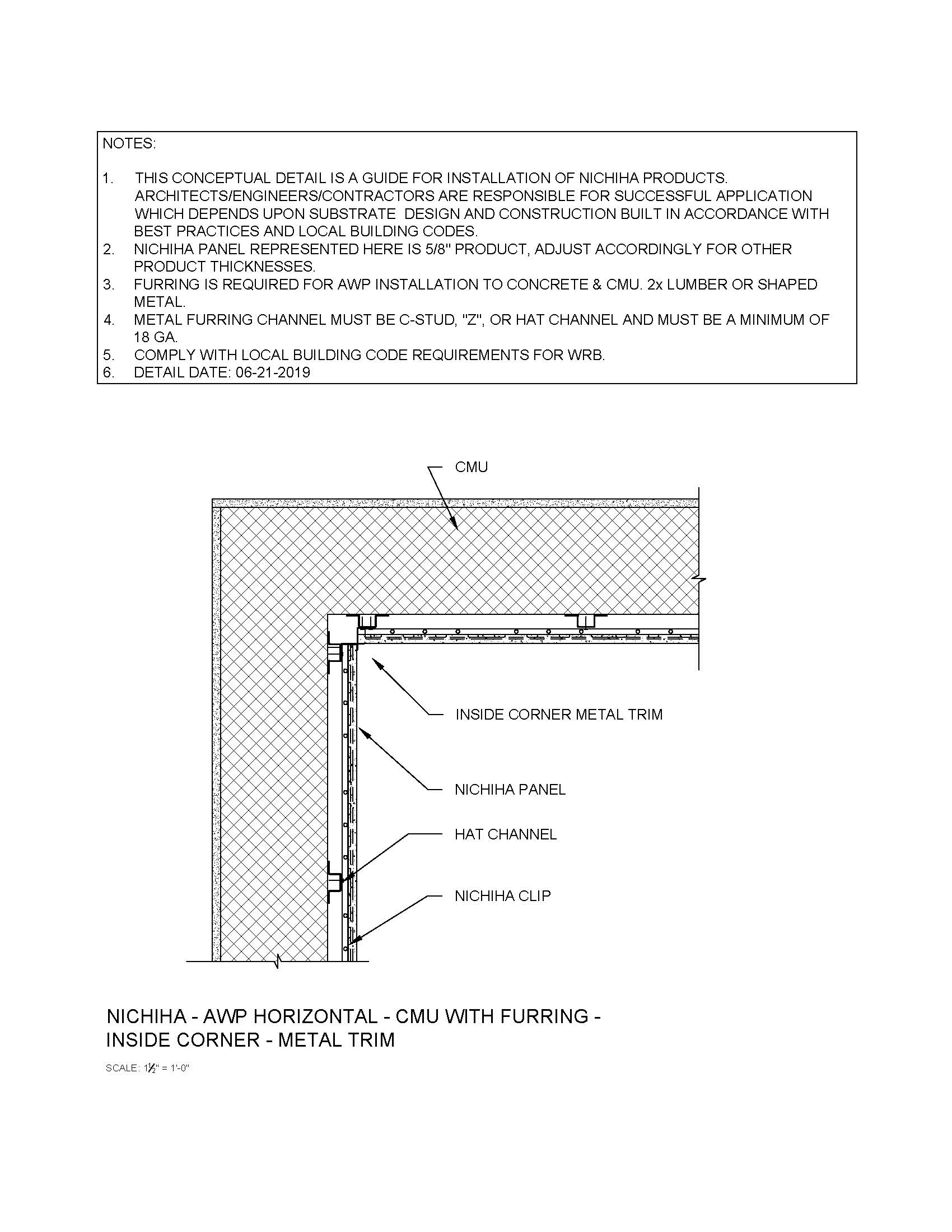

A wall section of horizontal Architectural Wall Panel (AWP) over CMU with furring, Ultimate Clips at an inside corner with Nichiha Inside Corner Trim
A plan view of horizontal Architectural Wall Panels (AWP) over CMU with furring at an outside corner using Nichiha Corners.

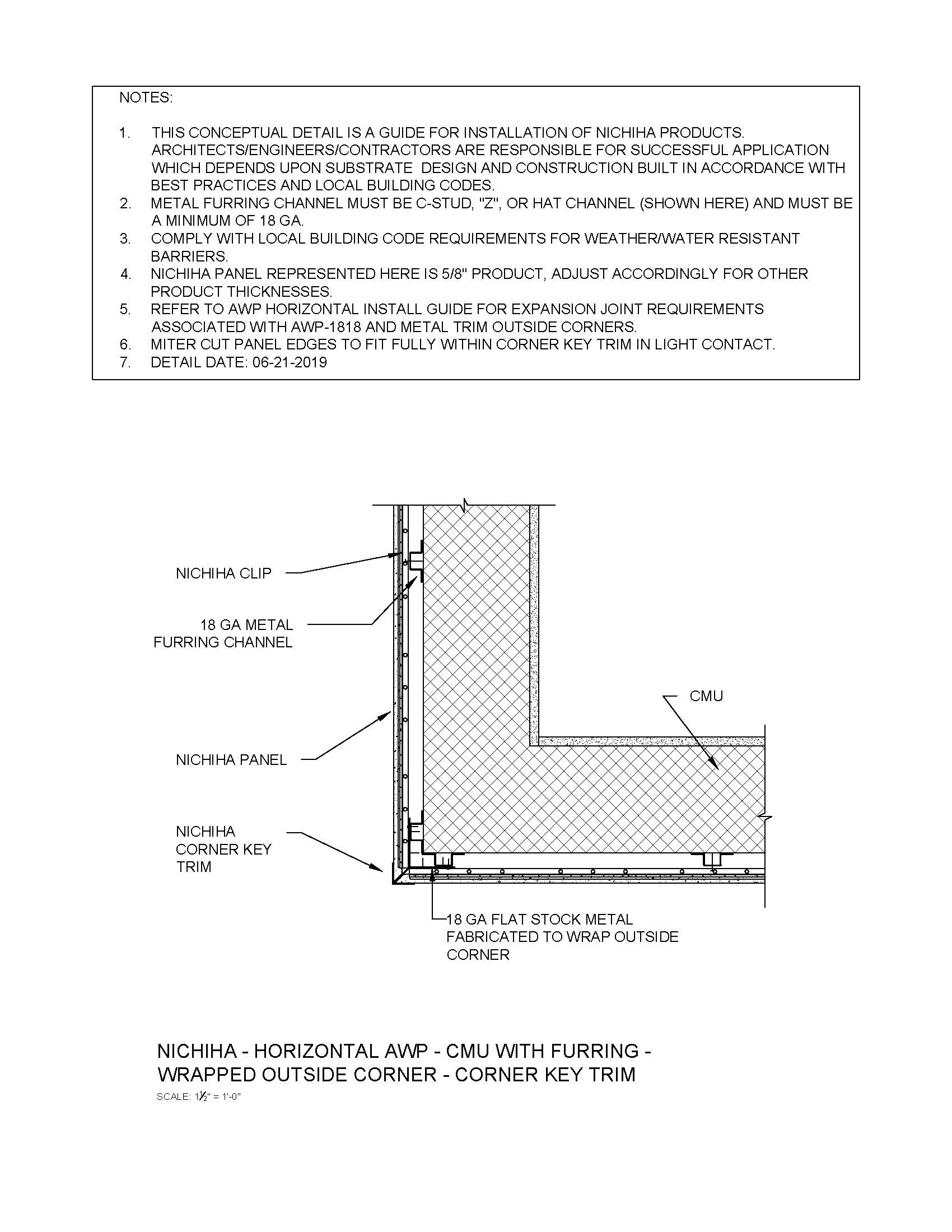

A plan view of horizontal Architectural Wall Panels (AWP) over CMU with furring at an outside corner using Nichiha Corner Key Metal Trim.

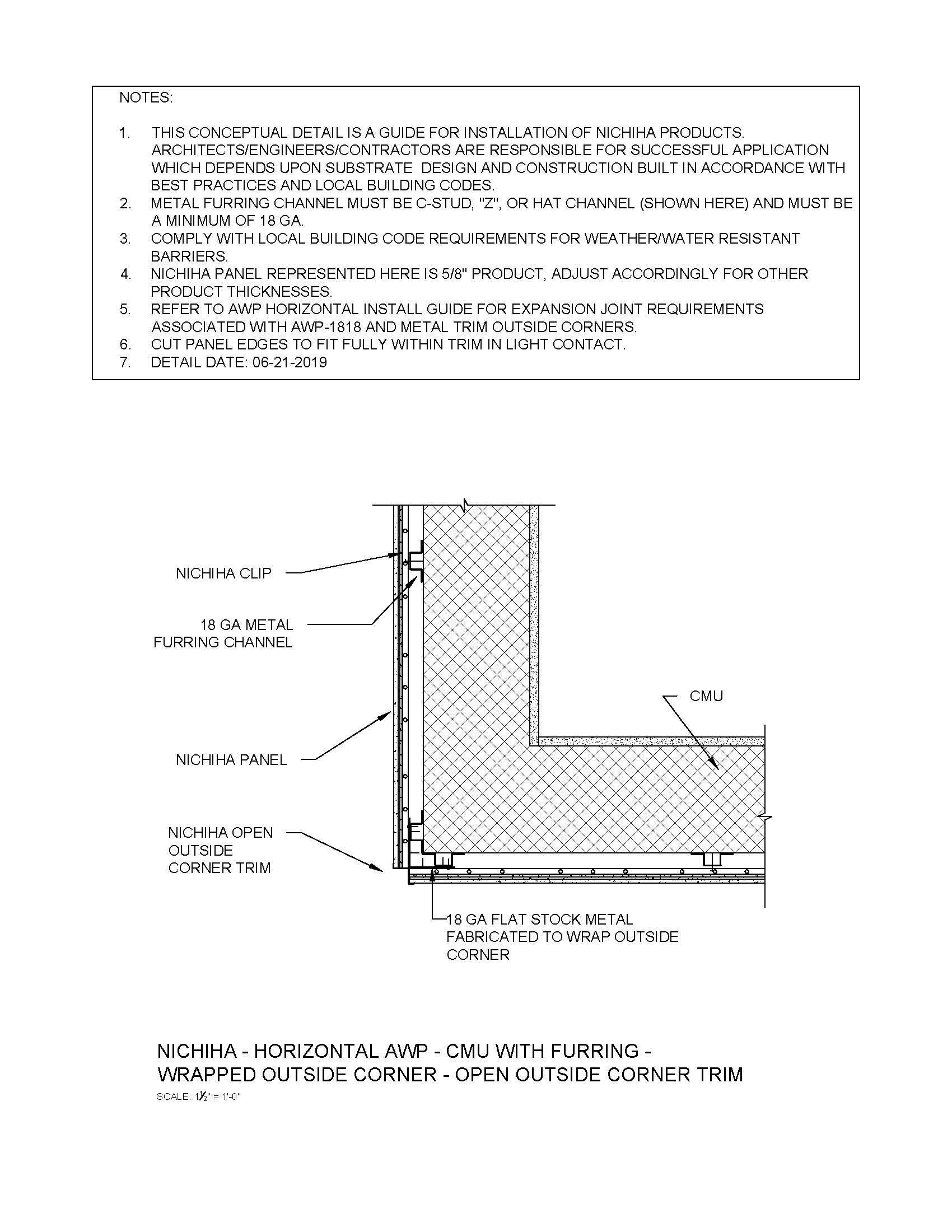

A plan view of horizontal Architectural Wall Panels (AWP) over CMU with furring at an outside corner using Nichiha Open Outside Corner Metal Trim.

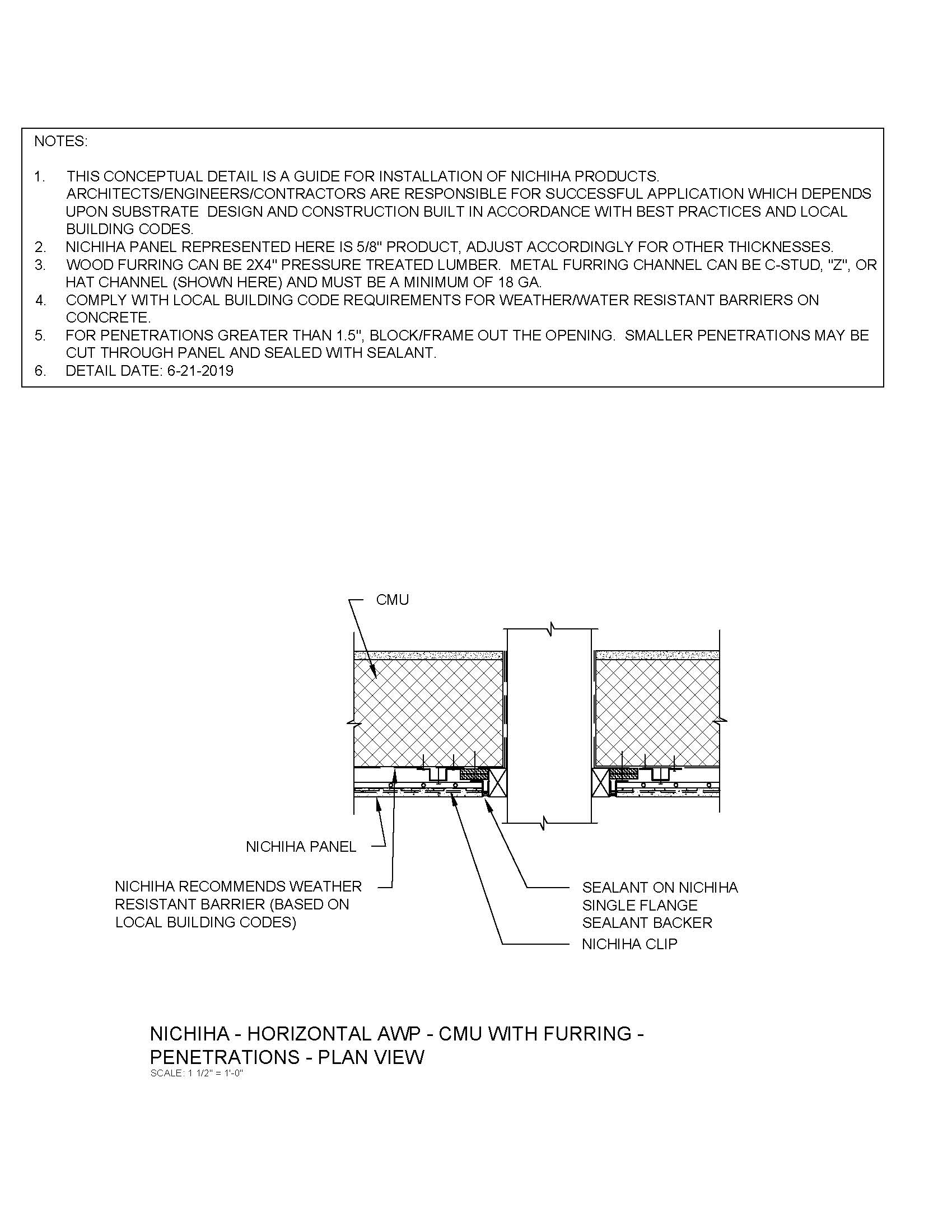

A plan view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a blocked penetration.
A section view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a blocked penetration.
A section view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a flush window head.
A section view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a flush window jamb.

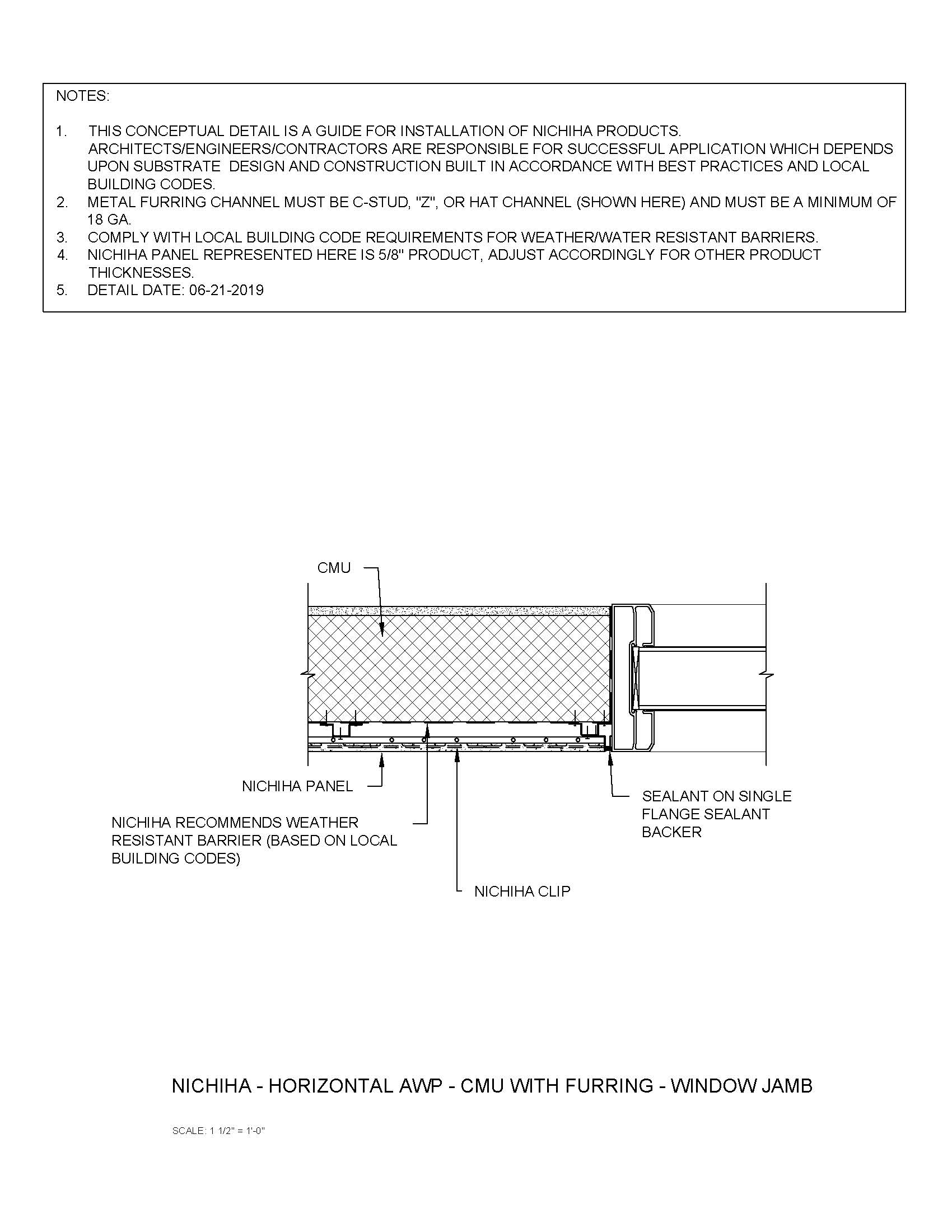

A section view of horizontal Architectural Wall Panel (AWP) over CMU with furring at a flush window sill.

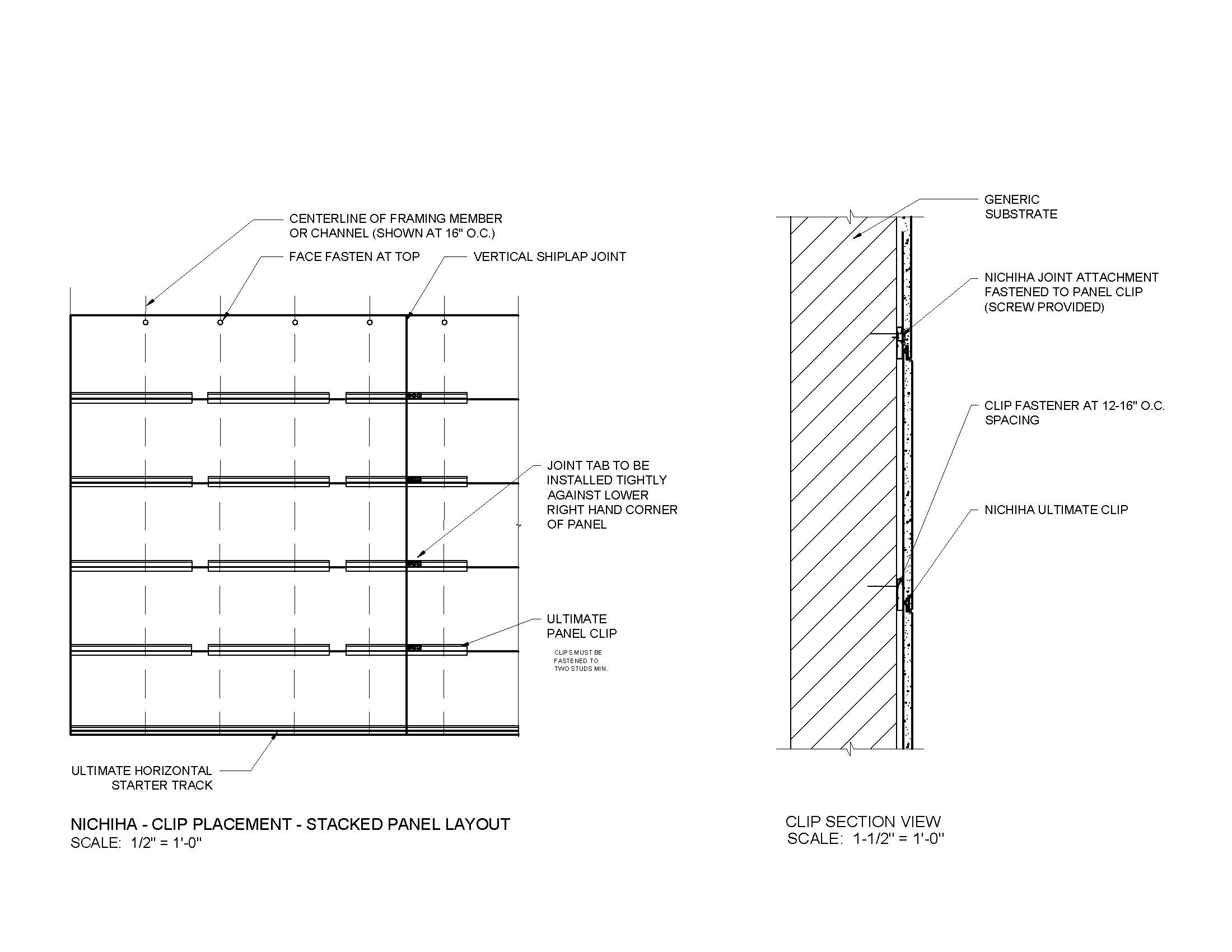

An elevation view depicting AWP1818 and Ultimate Clip layout in a Stacked Bond application.

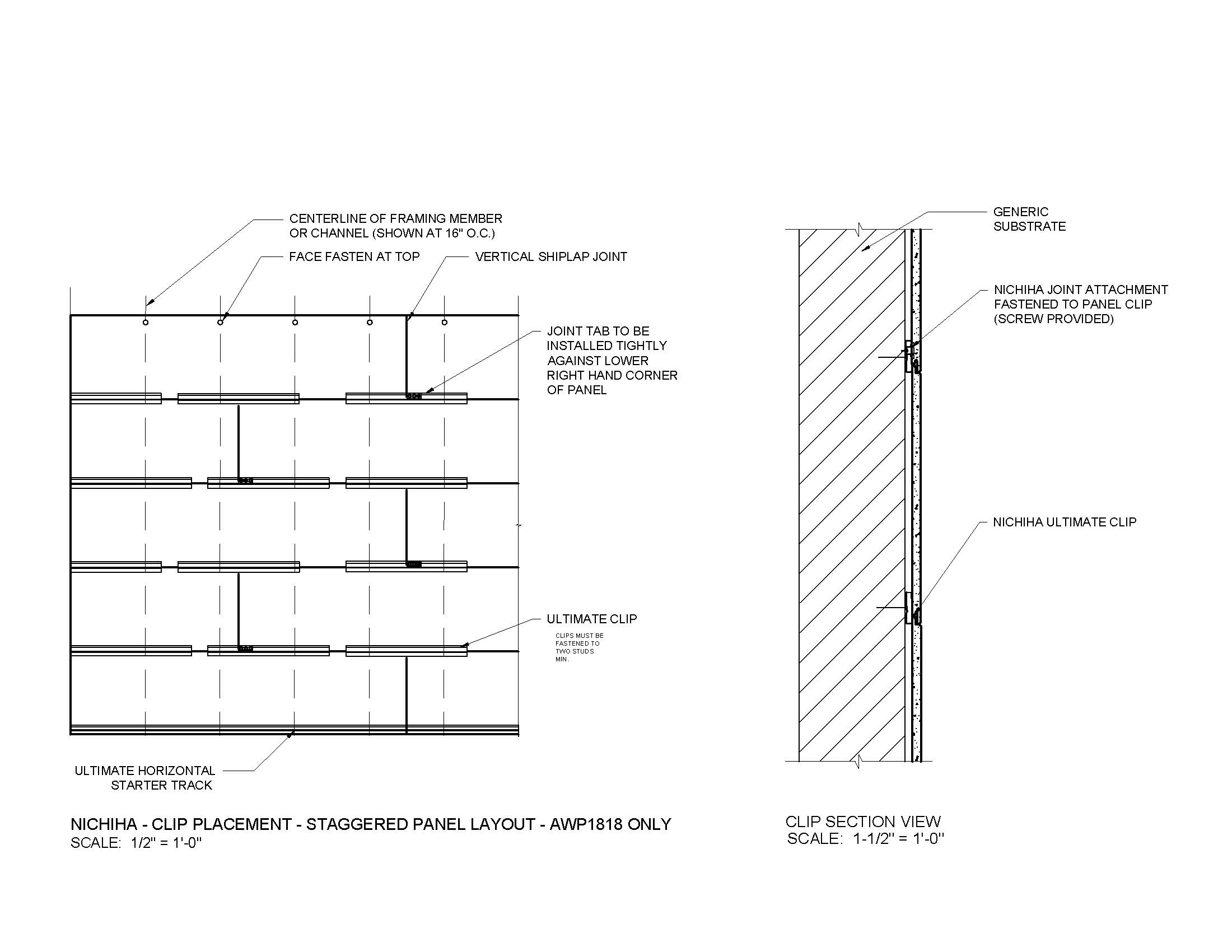

An elevation view depicting AWP1818 and Ultimate Clip layout in a Staggered Bond application.
A section detail of KuraStone (LedgeStone and StackedStone) transitioning to horizontal AWP at a horizontal joint with basic stud wall framing and wood sheathing.
A full wall section of horizontal Architectural Wall Panels (AWP) over stud framing with more than one inch of continuous insulation, furring, Essential Starter Flashing, Starter Track, Ultimate Clips with termination at a parapet cap.
A full wall section of horizontal Architectural Wall Panels (AWP) over stud framing with more than one inch of continuous insulation, furring, Essential Starter Flashing, Starter Track, Ultimate Clips with termination at a soffit.

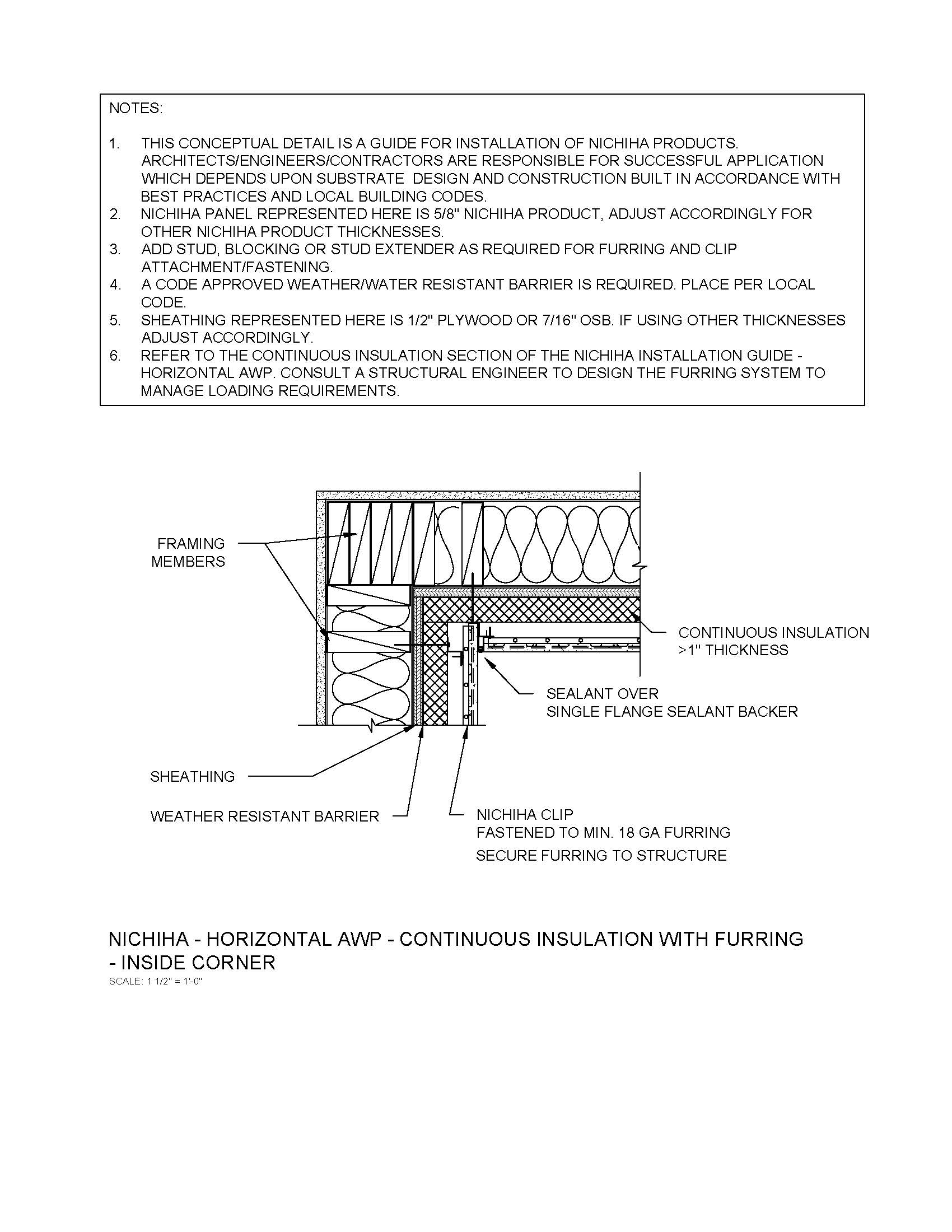

A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with more than one inch of continuous insulation and furring at a standard inside corner.
